Wafer Type PFA Lined Butterfly Valve

Wafer Type PFA Lined Butterfly Valve

Model:PBFV-12F115

Standard:API 609

Size:1"-72"

Pressure:150LB

Estimate Delivery:45 days

Back Series Enquiry Now
Product Detailed

Wafer Type PFA lined butterfly valve

Size: 2” – 24”
Pressure: Class 150, PN16
Body Material: ASTM A216 WCB, A351 CF8/CF8M
Seat: PTFE or PFA
Disc Material: CS+PFA or SS+PFA (FEP material also is available)
End Connection Standards: GB/T, JIS, DIN, API all are available

Technical Specification

• Basic Design: API 609
• Wafer End: ASME B16.5, Class 150, RF
• Face to face: ASME B16.10
• Inspection and Testing: API 598

Product Description:

  1. ISO 5211 Mounting Pad for Easy & Quick actuator installation
  2.  Positioning holes keep valve in the center between pipe flanges and also applied to many international standards.
  3. Three different sealing ensure PFA lined butterfly valve in high performance.
  4. Three self-lubricating bushing could keep stem not be deformed under pressing.
  5. When two back-up Belleville springs under pressing, it will makes sealing among body seat, tapered seal ring and disc edge more tightness
  6. Epoxy coating with baked finishing before valve assembly, keep inner body can’t be rusted.

Media temperature: -20℃ to 200℃
Available body material: Carbon steel, Stainless steel, Cast iron, Ductile iron
Available design standard: JIS B2032, DIN EN1092
More details click below catalogue to know

pdf download

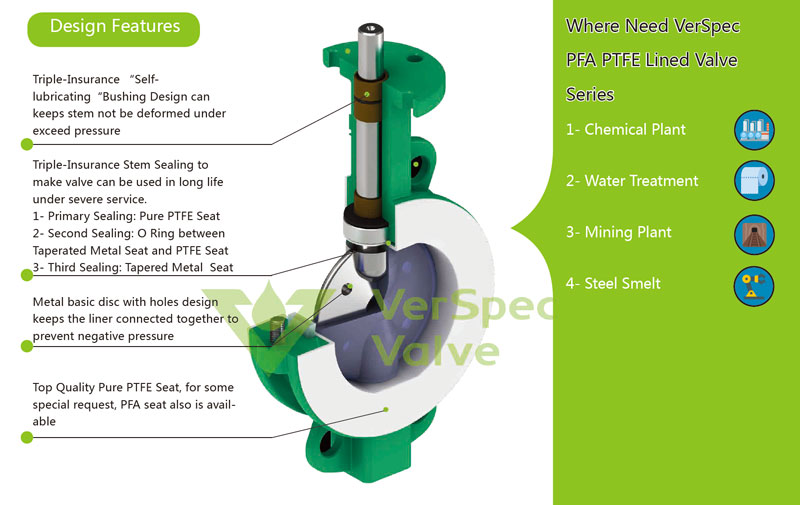

PFA lined butterfly valve structured
automatic operated butterfly valve

PFA lined butterfly valve manufacturer

valve products

Purchase PFA lined butterfly valve

Purchase PFA lined butterfly valve china
