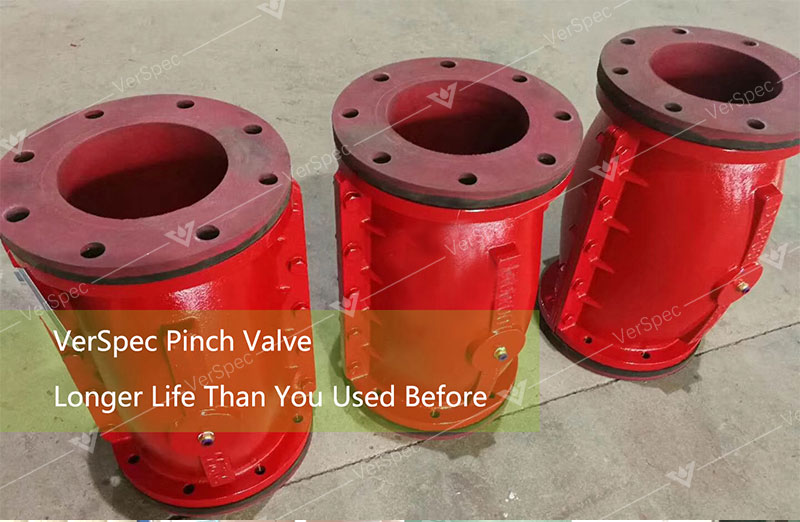

Inflatable Air Operated Pinch Valve

Inflatable Air Operated Pinch Valve

Model:VPIV-24N135

Standard:VerSpec Standard

Size:DN25-DN300

Pressure:PN10

Estimate Delivery:35 days

Back Series Enquiry Now
Product Detailed

VerSpec Inflatable Pinch Valve Technical Features:

●  Design & Manufacture of Pinch Valve: Factory Standard
● Face to face: Factory Standard

● End Flange: ASME B16.5 or drilling acc.to customer’s requirements

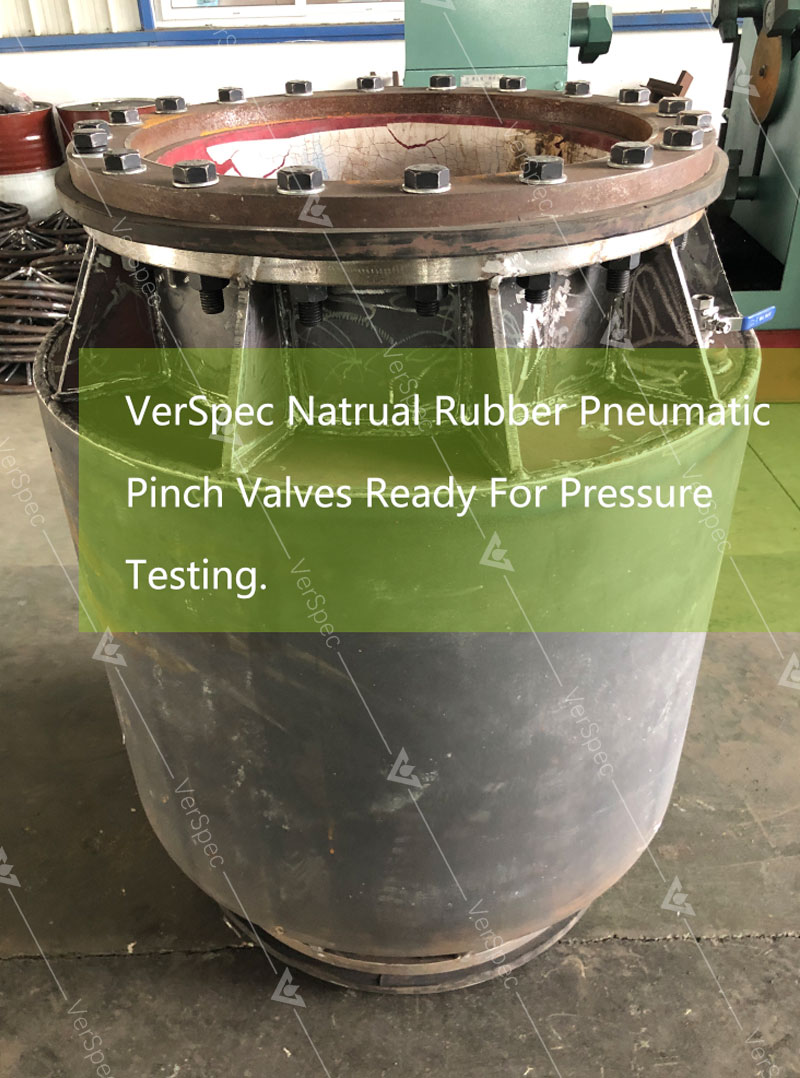

● Inspection and Test: API 598

● Body Material: Aluminum, Carbon Steel

● Sleeve Material: Natural Rubber, EPDM, Vinatex High Performance Abrasion-resistant Rubber

● Operator: Pneumatic actuator

● Size range: from DN40 to DN400

● Max Working Pressure: 4 Bar

 ● Max Design Pressure: 6 Bar

Features

● 100% isolation
● Full bore
● Only rubber sleeve in contact with the medium
● Long lifetime
● Opening tags in the sleeve
● Face-to-face according to VerSpec Factory Standard
● No jamming or clogging
● Trouble-free operation
